UVC Water Disinfection

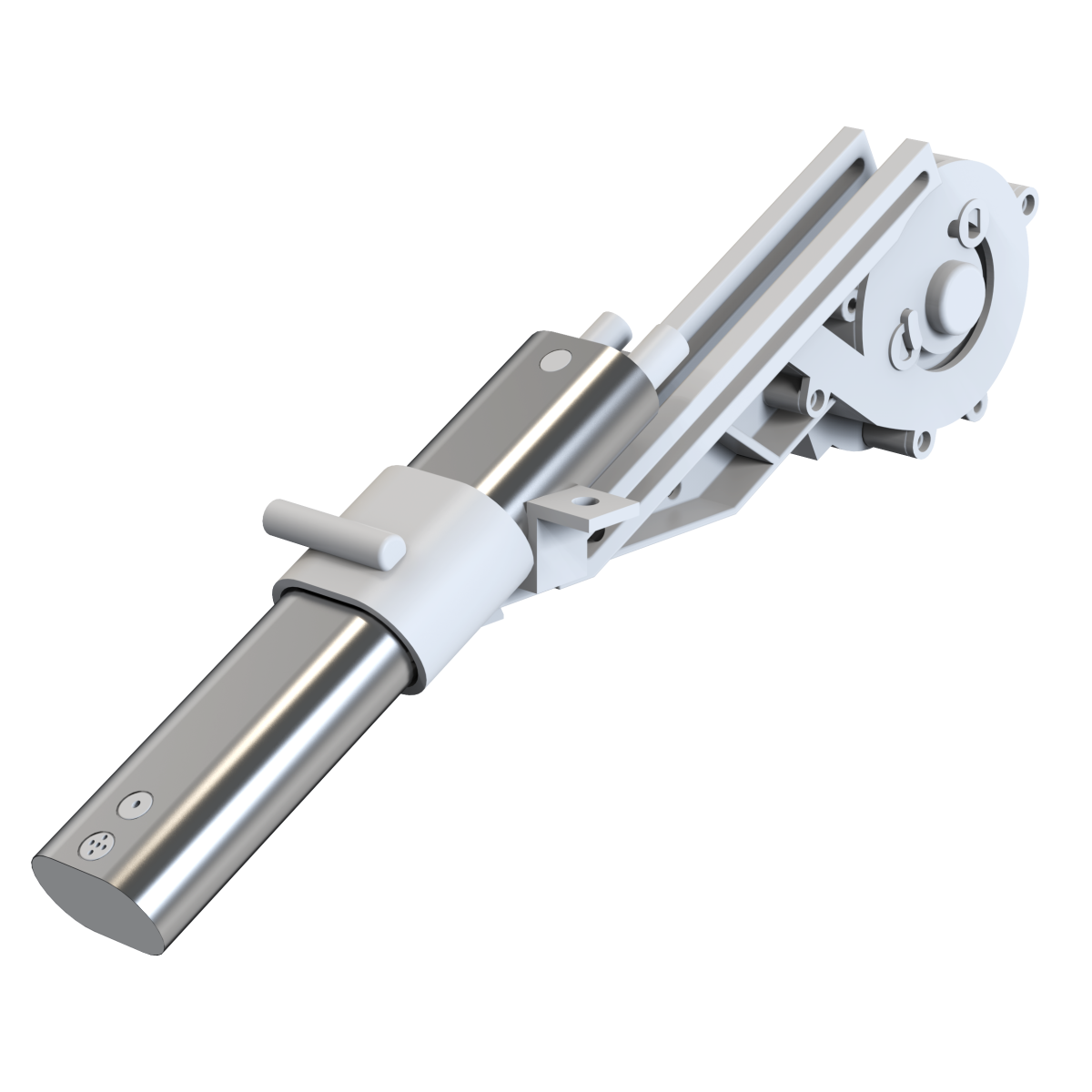

UVC Intelligent Toilet Nozzle for Smart/ Intelligent Toilet Bidets

UVC Disinfection Module
Module NO.: HC-MK-40A-135
Disinfection Rate: 99.999%
Module Size: ø38*135mm
 Chip Power: 40mW
Disinfection Flow Rate: 1L/min
Input: 12V/24V  2A
Material: Food Grade ABS
Water Pipe: 1/4"
Application: Implant into Intelligent Toilet for hip and female cleaning









◇ Product Function:

Connecting the water pipe through the intelligent toilet to disinfecting the water: The module is configured with UVC ultraviolet amplification(mainly 260 to 280nm) to destroy the molecular structure of DNA (deoxyribonucleic acid)and RNA (ribonucleic acid)of microbial cells,resulting in the death of growth cells and/or regenerative cells, so as to achieve the effect of sterilization and disinfeciton .(Elimination:cocci,bacilli,Virbrio,Spirllum,etc.)



◇ Product Features:

1.Perfect combination :UVC-LED purification module,small size,easy to install.And the appearance is combined with the intelligent toilet,which is beautiful without losing the sense of overall design.

2.Outstanding effect:the ultra fast(0.2s) sterilization technology of UVC light energy fluid can be opened intelligent when spraying water to ensure that the nozzle cleaning water is clean and sterile and effectively prevent bacterial infection private parts.

3.Safety ensure:the purification module has passed the safety and sterilization certification.Product can effectively inhibit the growth of bacterial,avoid external pollution.Ensure healthy and clean during use.Protect the toilet nozzle from pollution in the whole process.Could effectively solve the worry of unclean spray of intelligent toilet nozzle and eliminate health threats.





◇ Product Specification:



Product Model

Hechuang Hitech intelligent toilet module

Product Size

23*61mm

Product Weight

200±10g

Product Color

no color

Working voltage

12V-2A

Working Current

760mA

Sterilization Method

UVC 275NM

Switching Mode

start by high pressure water flow

Connection Mode

1/4" pipeline

Storage Temperature

-2-60℃

Product Power

9.5W

Operating Temperature

-2-80℃

Application

Intelligent Toilet

Safety Certification Requirements

Rohs
